- SMD Series(Portable)
4 Reasons to Choose SMD Series
It is a device based on JEDEX patents and has realized excellent detection power.
Verification and calibration by NIST standard particles ensure the detection power to meet international standards
It provide ISO-1644 Part9 Surface Particle Management Standards and IS)-16232 & VDA19 Specification-Based Coefficients
(Applying the actual length verification algorithm of the bent fiber to discriminate the actual length of the fiber)
Detection Limits, Counting Area
Model Name | SMD1100 | SMD150 | SMD125 | SMD105 |
Detection Limit | 100 um | 50 um | 25 um | 5 um |
Examples of layout changes based on usage environment and preference
|
|
|

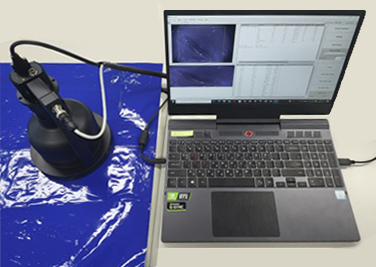

counting operation scene (Sticky Mat, Floor Mat) | SMD105 Tablet PC Application | SMD150-2022 Sensor |

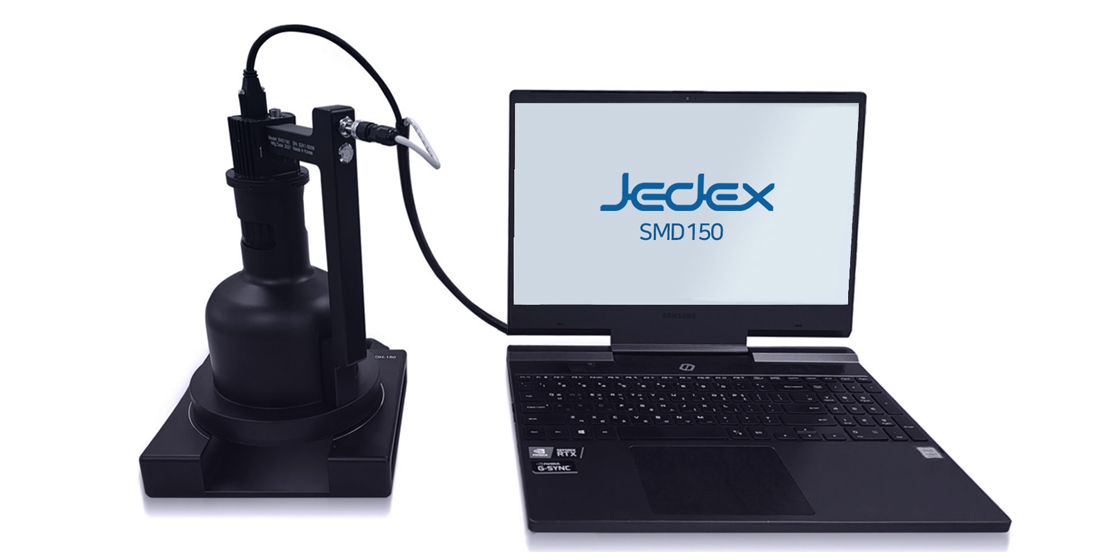

Particle Coefficient Using SMD150 (Portable) Particle Counter
Semiconductor P & T process: >50 um, coefficient area per session: 70 mm x 60 mm (minimum)
Particle coefficients of a wide range of samples, including transparent, translucent, opaque, reflective mirrors, glass and film, patterned, blank (PCB) Membrane Filter (Black, White), Silicon Wafer, Glass Wafer, Sticky Mat, etc.
Using the above samples, particles of various samples such as tray, bag, equipment surface, liquid, gas, etc. can be collected and counted.
